  • High-quality insulated piercing connector for abc cable suppliers in china

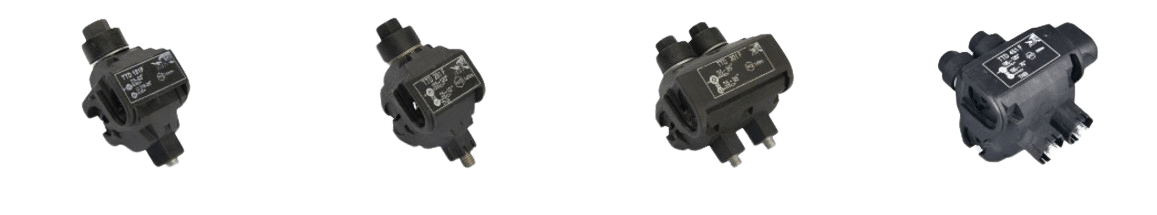

TTD Series Insulation Piercing Connector (IPC)

1.Main line:Insulated copper or aluminum

2.Branch line:Insulated copper or aluminum

3.Live-line work or power-cut work is allowable

4.Main body of connector is made of high strength insulating material that anti mechanical change or climatic variation.

5.The screw that is equipped with fastening torque nut is anti-corrosion treated,the torque nut enables the installation to be much simple,safe and quick,its constant puncturing pressure guarantees best electrical effect for the cable.

6.The connector is featured with property of waterproof,it is able to withstand voltage of 6kV in water without breakdown phenomenon.

7.The waterproof sealing end cap of branch line prevents water from entering into the branch connected conductor.It can be branched on the left or right side according to the demand.

Add to Quote
Inquiry Now

Share us on:

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on skype
Share on telegram
Share on xing
Share on whatsapp
Share on email
Share on print

Description

TTD Series Insulation Piercing Connector for abc cable

When it comes to ensuring the safety and reliability of electrical connections, our TTD Series insulated piercing connector for abc cable is the ideal choice. Designed to meet the highest standards of performance and safety, this connector is perfect for a wide range of applications. These include residential, commercial, and industrial electrical systems.

Our TTD Series insulated piercing connector for abc cable is crafted from high-quality materials. This ensures excellent dielectric strength, durability and longevity. Learn more about dielectric strength of insulating material.

Type Applicable Conductor Bolt (Pcs)
Main (mm2) Tap (mm2)
TTD-121F 25-95 2.5-25 1
TTD-151F 25-95 2.5(6-35) 1
TTD-201F 35-95 25-95 1
TTD-281F 50-185 2.5(6-35) 1
TTD-282F 25-95 2×2.5(6-35) 1
TTD-301F 25-95 25-95 2
TTD-451F 185-70 185-70 2



Key Features and Benefits of TTD Series Insulation Piercing Connector

  1. Superior Safety: The flame retardant materials help prevent the spread of fire, offering enhanced safety in critical applications.
  2. Reliable Performance: Our connector ensures minimal resistance and optimal conductivity for a secure and efficient electrical connection.
  3. Easy Installation: The design allows for quick and straightforward installation, saving time and effort on the job.
  4. Versatile Application: Suitable for various types of electrical systems, it can be used in both new installations and retrofit projects.

Whether you are an electrical contractor, a maintenance technician, or a DIY enthusiast, our TTD series IPC is an excellent addition to your toolkit. It not only enhances the safety of your electrical connections but also ensures long-lasting performance.

Why Choose our TTD Series Insulation Piercing Connector:

  • Quality Assurance: We prioritize quality to meet and exceed industry standards.
  • Customer Support: Our dedicated team is here to assist with any questions or concerns.
  • Global Shipping: We offer reliable shipping options to deliver our products to your location promptly.

Invest in our TTD series IPC today. Experience the peace of mind that comes with using a high-quality, reliable product. Order now and take advantage of our competitive pricing and fast shipping options.

Upgrade your electrical systems with our TTD series IPC. Ensure the highest level of safety and performance. Browse our range of Insulation Piercing Connector for more options and place your order today!
