  • High-quality Flame Retardant insulation piercing connector for secure electrical connections

FN Series Flame Retardant-Insulation Piercing Connector (IPC)

Material
Insulation material made of weather resistant glass fiber reinforced polymer with V0 flame retardant level

Contact teeth made of tinned brass or copper or aluminum.

Structure Feature
1.Had passed 6kV test under water for 1 Min.
2.Standard:EN 50483-4,NF C33-020,NF C33-004

Add to Quote
Inquiry Now

Share us on:

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on skype
Share on telegram
Share on xing
Share on whatsapp
Share on email
Share on print

Description

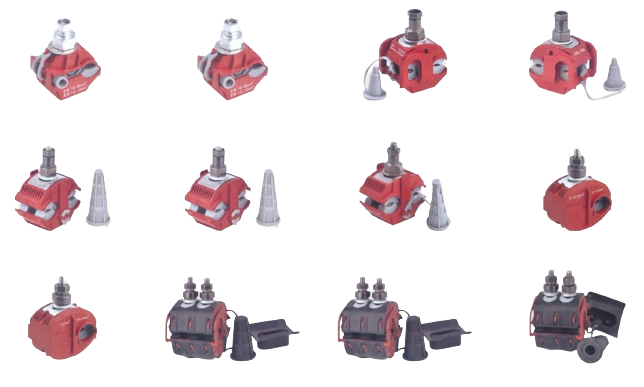

FN Series Flame Retardant Insulation Piercing Connector

When it comes to ensuring the safety and reliability of electrical connections, our Flame Retardant Insulation Piercing Connector is the ideal choice. Designed to meet the highest standards of performance and safety, this connector is perfect for a wide range of applications. These include residential, commercial, and industrial electrical systems.

Our Flame Retardant Insulation Piercing Connector is crafted from high-quality materials. This ensures excellent durability and longevity. The flame retardant properties mean the connector can withstand high temperatures. As a result, it reduces the risk of fire hazards, making it a crucial component in safety-conscious electrical installations. Learn more about UL 94, the Standard for Safety of Flammability of Plastic Materials.

Type Equivalent Applicable Conductor Nominal Current (A) Dimensions (mm) Weight (g) Bolt (Pcs)
Main (mm2) Tap (mm2)
FN041 JJC-1 1.5-35 1.5-10 41 21x27x23 10 1
FNEP JJC-2 16-95 1.5-10 55 27x41x62 55 1
FN2-95 JJC-3 16-95 4-35(50) 157 46x52x87 160 1
FN2-150 JJC-4 25-95 6-35(50) 157 46x52x87 162 1
FN3-95 JJC-5 25-95 25-95 157 50x61x100 198 1
FN3-120   16-120 16-120 214 50x61x100 198 1
FN4-150 JJC-6 50-120 50-120 316 50x61x100 280 1
FN6 JJC-7 120-240 25-120 276 51x68x100 360 1
FN7   150-240 10-25 102 51x68x100 336 1
FN240 JJC-8 95-240 95-240 425 83x130x130 1020 2
FN300   95-300 95-240 425 83x130x130 1040 2
FN400   120-400 95-240 425 83x130x130 1050 2



Key Features and Benefits of FN Series Flame Retardant IPC:

  1. Superior Safety: The flame retardant materials help prevent the spread of fire, offering enhanced safety in critical applications.
  2. Reliable Performance: Our connector ensures minimal resistance and optimal conductivity for a secure and efficient electrical connection.
  3. Easy Installation: The design allows for quick and straightforward installation, saving time and effort on the job.
  4. Versatile Application: Suitable for various types of electrical systems, it can be used in both new installations and retrofit projects.

Whether you are an electrical contractor, a maintenance technician, or a DIY enthusiast, our Flame Retardant Insulation Piercing Connector is an excellent addition to your toolkit. It not only enhances the safety of your electrical connections but also ensures long-lasting performance.

Why Choose our FN Series Flame Retardant IPC:

  • Quality Assurance: We prioritize quality to meet and exceed industry standards.
  • Customer Support: Our dedicated team is here to assist with any questions or concerns.
  • Global Shipping: We offer reliable shipping options to deliver our products to your location promptly.

Invest in our Flame Retardant Insulation Piercing Connector today. Experience the peace of mind that comes with using a high-quality, reliable product. Order now and take advantage of our competitive pricing and fast shipping options.

Upgrade your electrical systems with our Flame Retardant Insulation Piercing Connector. Ensure the highest level of safety and performance. Browse our range of Insulation Piercing Connector for more options and place your order today!
